Shredder Hammers Manufacturer

Crushing Hammer Head are the most important wear parts of Coal crusher, We use high manganese steel with chrome as the material to make sure the quality.

  • Machining Tolerance: +/-0.01mm
  • Specification: According to the drawing

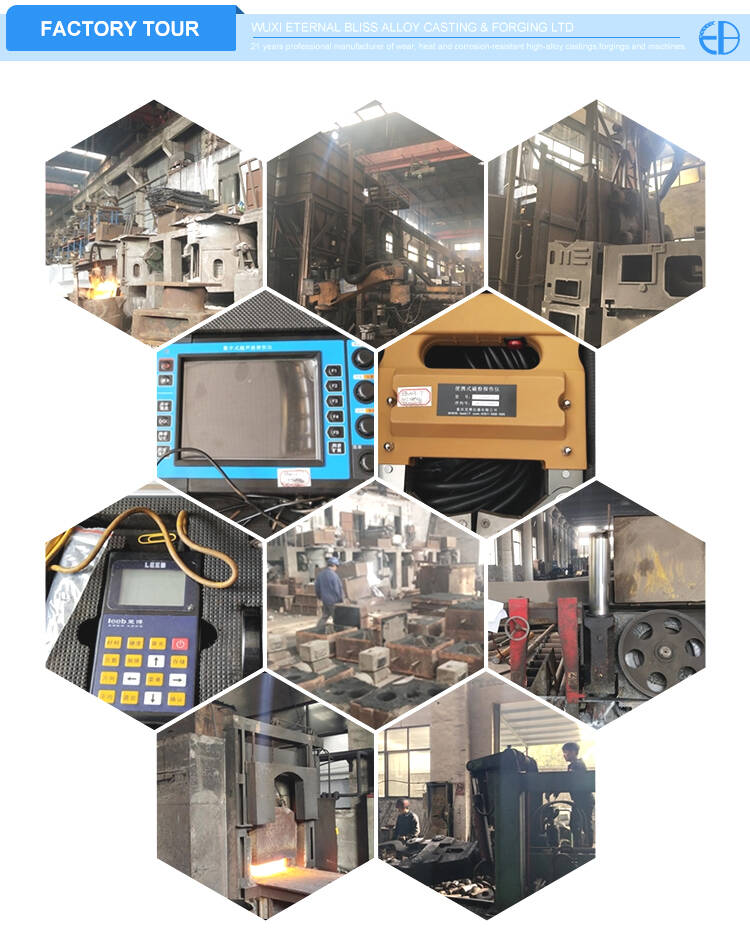

  • Plant: We Have Our Own Factory
  • Bimetal composite wear-resistant hammer
  • Main Material: High manganese steel, High Chromium Alloy Steel
  • Specifications: High Dimension Accuracy
  • Inspection: Ut, Metallographic Examination, Hardness Test etc.
  • Application: Used in Metallurgy, Mining , Chemical Industry, Cementand Crushing Equipment
  • Transport Package: Wooden Cases
Our Photos for Shredder Hammers:
  • Shredder Hammers
  • Shredder Hammers
  • Shredder Hammers
  • Shredder Hammers

Compound Wear-resisting products Series:

Hardfacing wear-resistance technique and bimetal compound casting technique are adopted to make high strength wear-resisting products, with the characteristics of being easy to process and strong wear-resisting ability.

High Manganese Steel Crusher Hammer Head Series:

They are the wear-resisting materials that are mainly used in metallurgy,mining and crushing equipment, including ordinary high manganese steel, modified high manganese steel, super-high manganese steel, multi-component alloy intensely processed high manganese steel and magnet high aluminum steel lining plates.

High Chromium Cast Iron Series:

These products are mainly used in the crushing equipment or matallurgy, mining and cement sectors, suitable for medium impact casting, With favorable cost performance and sound wear resistance,they are divided into four groups according to the service conditions:
KmBCr15, KmTBCr20, KmTBCr26 and compound type.

Medium and Low Alloy Steel Series:

These products are mainly uesd in the lining plates for power plants, coal plants, xement factories and some mining ball mills, characterized with good adaptability, non-deforming,non-breaking and twice the longevity of high manganese steel.

Basic Description:
  • Standard: GB/ AISI /DIN/ GOST
  • Certification: ISO
  • Our Advantage: Rich Experience, Best Service, Professional Team.
  • Our Customers:United States, Malaysia, Russia, Australia, Turkey, Bangladesh, Colombia and many other countries
  • We Goal:Provide Top Quality Product, Satisfactory Service

Contact us:

  • If you have interest,please do not hesitate to contact me.Pls send the drawing,technical requirements to us by email.
  • Looking forward to receiving your inquiry and reply. Thank you.

Standard Specification for Shredder Hammers:

Reference Standard Nominal Chemical Composition (W%)
ASTM A128 C Mn Cr Mo Ni Si (Max.) S (Max.) P(Max.) Eqv. Standard GB5680
A 1.05-1.35 ≥11.0 - - - 1 0.06 0.05 GB 5680  ZGMn13-1  AS2074/H1A
B-1 0.90-1.05 11.5-14.0 - - - 1 0.06 0.05 GB 5680 ZGMn13-2
B-2 1.05-1.20 11.5-14.0 - - - 1 0.06 0.05 GB 5680  ZGMn13-2,3 AS2074/H1A
B-3 1.12-1.28 11.5-14.0 - - - 1 0.06 0.05 GB 5680  ZGMn13-2,3 AS2074/H1A
B-4 1.20-1.35 11.5-14.0 - - - 1 0.06 0.05 GB 5680  ZGMn13-2,3 AS2074/H1A
C 1.05-1.35 11.5-14.0 1.50-2.50 - - 1 0.06 0.05 GB 5680  ZGMn13-4 AS2074/H1B
D 0.70-1.30 11.5-14.0 - - 3.0-4.0 1 0.06 0.05 -
E-1 0.70-1.30 11.5-14.0 - 0.90-1.20 - 1 0.06 0.05 GB 5680  ZGMn13-5 AS2074/H1C
E-2 1.05-1.45 11.5-14.0 - 1.80-2.10 - 1 0.06 0.05 GB 5680  ZGMn13-5
F 1.05-1.35 6.0-8.0 - 0.90-1.20 - 1 0.06 0.05 -
- 1.30-1.50 ≥17.0 - - - 1 0.06 0.05 AS2074/H1D
